Breathing Machine

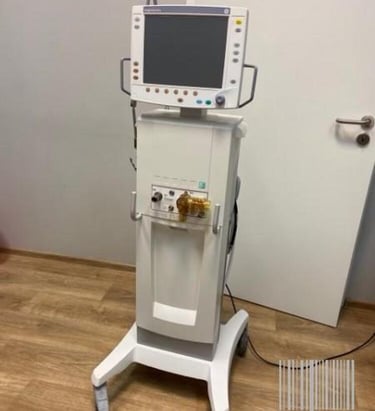

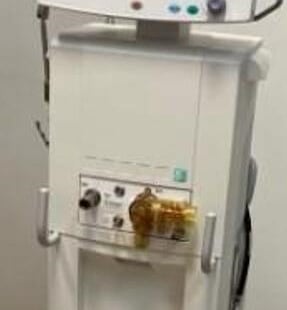

This ventilator housing is a thin walled casting with many tight tolerance features, as is customary in the medical device field.

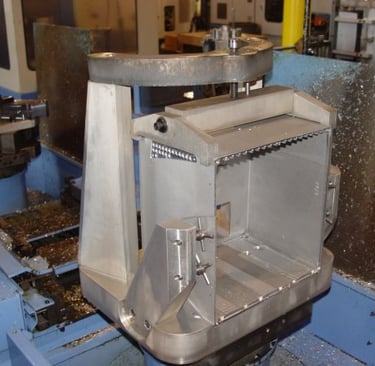

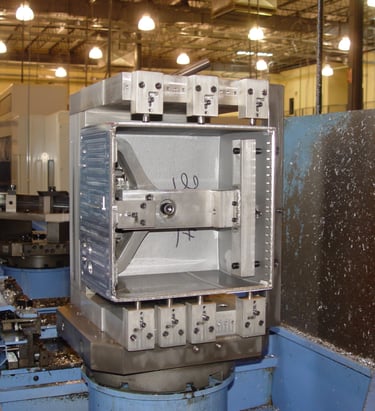

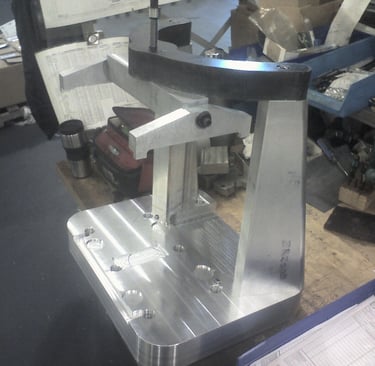

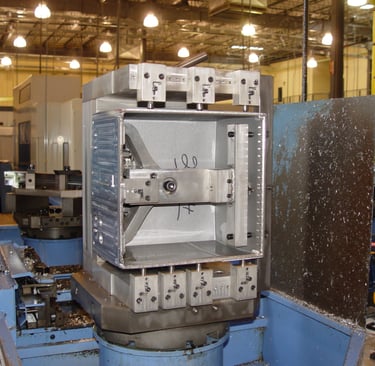

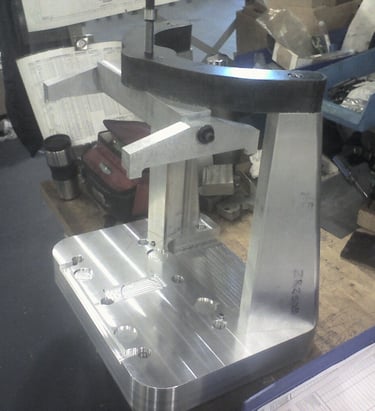

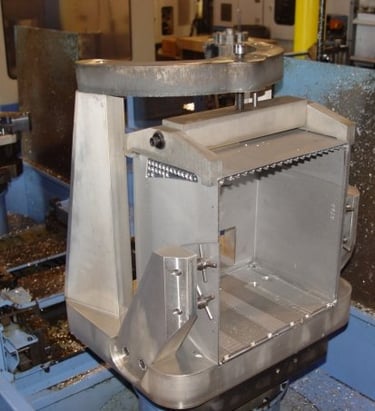

2 fixtures were able to accomplish the machining of this fragile part.

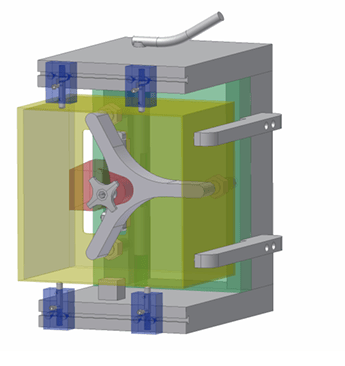

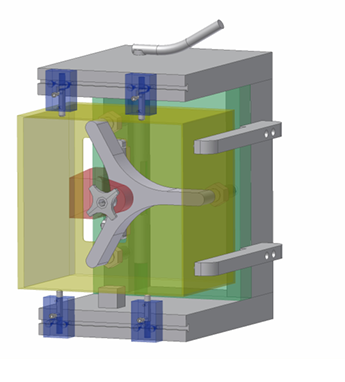

Non-distorting anti-vibration features were incorporated.

While this fixture required some in-field adjustments, which was anticipated, the whole project was implemented from first draft to production in 4 weeks.

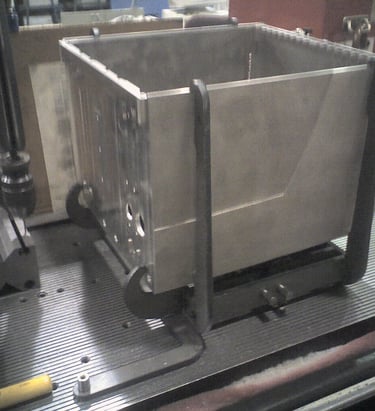

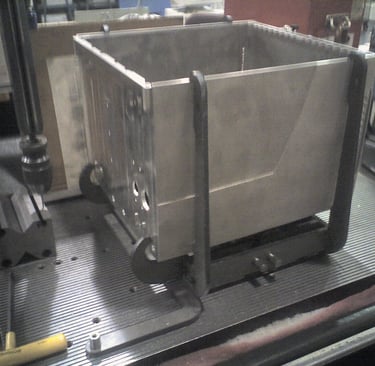

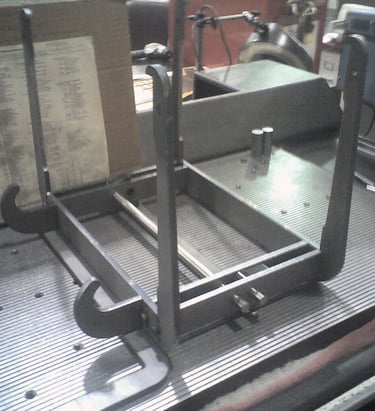

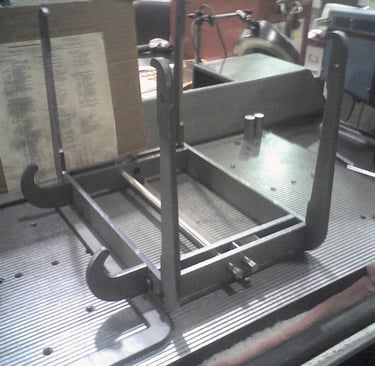

We also made a laser cut inspection fixture for the CMM, which required no fasteners to assemble, almost like LEGOs. Low cost is our pulse.
